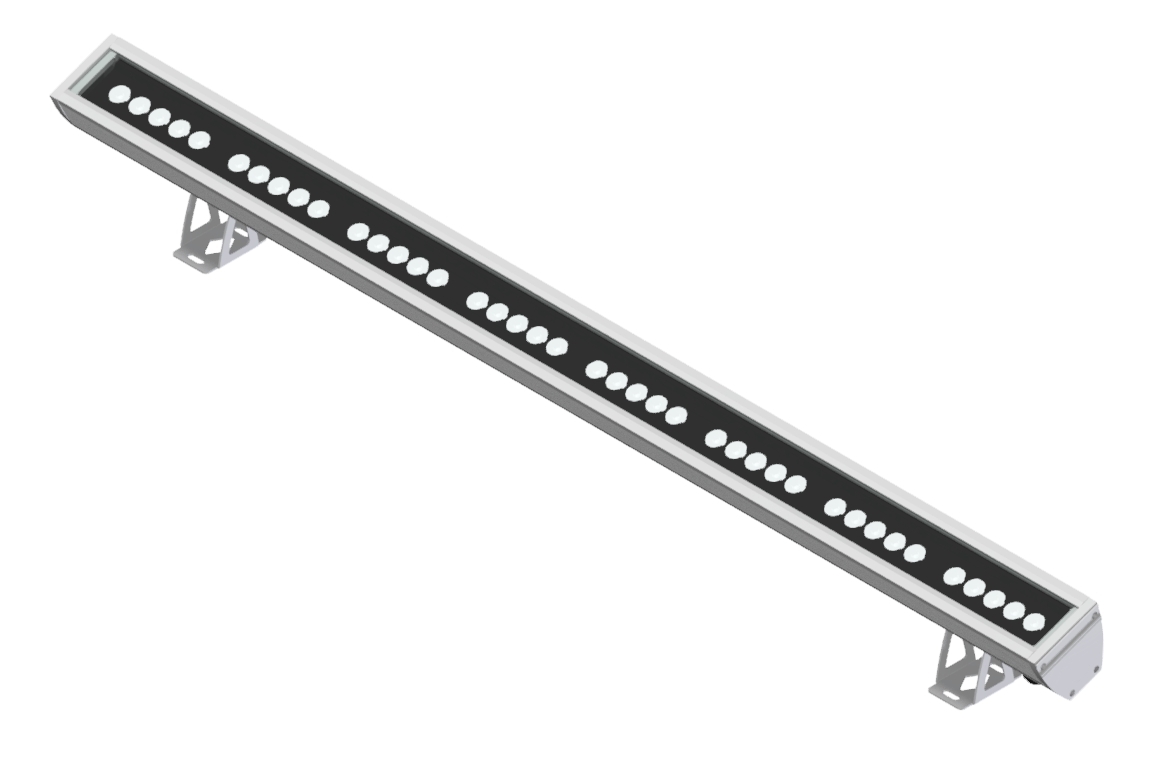

LED Linear Wall Wash - White & Single Color

​Specifications

Linear type surface Wall/Ceiling/Ground mounted luminaire with specification grade optical performance using high efficacy LED. Typical use is for wall grazing, spot or floodlighting with adjustable aiming and variety of different beam types.

Housing

Low copper, corrosion resistant, Extruded aluminum construction. One-piece silicone gasket ensures water-tight and dust-tight construction. Available in two nominal lengths - 39.4” or 49.2”

Optics/Lens

Clear tempered glass lens enclosed in the house and sealed with extruded rubber gasket. Ultra high efficiency TIR optics provides variety of different beam types. Optical performance is enhanced by high 95% reflecting collimating reflectors. Available beam types are Narrow, Medium, Wide Elliptical Horizontal and Elliptical Vertical.

Electrical

High power LED source, with performance of greater than 95 lumens per watt. Available in range of Color Temperature 3000K- 5000K, CRI of 70 or greater. 2700K available on request.

LED Drivers

UL/CSA recognized component to meet UL8750 & EN61347 (USR/CNR -E328335). Suitable for input power at 120-277VAC. Minimum power factor >0.95. Integrated 10kV/5kA surge protection device.

Finish

Standard finish is charcoal gray power coat paint.
